Standard Duty Backup Pads 5/16 - 24 Thread

Autobody and fine finishing. Tapered edge with epoxy-glass backing (except as noted). Fine grit abrasive 180+, 10,000 RPM.
Part #Size (dia.)TypeDescriptionMSRP
55055"Glue**Aluminum Backing, Fully Molded, Tapered Edge$19.56
55155"GlueFully Molded, Tapered Edge$19.56
55255"PSA**Aluminum Backing, Fully Molded, Tapered Edge$19.56
55355"PSAFully Molded, Tapered Edge$19.56
5535K5"VelcroFully Molded, Tapered Edge$23.42
5535V5"PSA5-Hole Vacuum, Fully Molded, Tapered Edge$23.42
5535KV5"Velcro5-Hole Vacuum, Fully Molded, Tapered Edge$25.63
5535P5"PSAPetal Pad, Fully Molded, Tapered Edge$19.56
5535VP5"PSA5-Hole Vacuum Petal Pad, Fully Molded, Tapered Edge$23.42
55755"PSAStraight Edge, Fully Molded$19.56
66066"Glue**Aluminum Backing, Fully Molded, Tapered Edge$19.56
66166"GlueFully Molded, Tapered Edge$19.56
66266"PSA**Aluminum Backing, Fully Molded, Tapered Edge$19.56
66366"PSAFully Molded, Tapered Edge$19.56
6636K6"VelcroFully Molded, Tapered Edge$23.42
6636KV6"Velcro6-Hole Vacuum Ring & Groove, Fully Molded, Tapered Edge$31.17
6636P6"PSAPetal Pad, Fully Molded, Tapered Edge$19.56
6636V6"PSA8-Hole Vacuum, Fully Molded, Tapered Edge$25.42
6636VP6"PSA8-Hole Vacuum Petal Pad, Fully Molded, Tapered Edge$25.42
6636VR6"PSA6-Hole Vacuum Ring & Groove, Fully Molded, Tapered Edge$25.42
66866"PSAOne-Inch-Thick Soft Pad, Fully Molded, Tapered Edge$19.56
6686K6"VelcroOne-Inch-Thick Soft Pad, Fully Molded, Tapered Edge$24.54

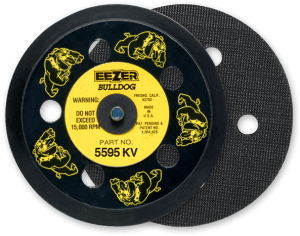

Bulldog Heavy-duty Backup Pads 5/16 - 24 Thread

Production woodworking and industrial pads. Tapered edge with epoxy-glass backing. Fine to coarse grit abrasives 120+, 15,000 RPM.
Part #Size (dia.)TypeDescriptionMSRP
3020K3"VelcroNEW! Bulldog Pad 1/4 x 20 Male Thread$18.50
3025K3"VelcroNEW! Bulldog Pad 5/16 x 24 Male Thread$18.50
50005"PSA$22.32
5000K5"Velcro$24.54
50005"PSA$24.54
5000K5"Velcro$24.54
5000V5"PSA5-Hole Vacuum$24.54
5000KV5"Velcro5-Hole Vacuum$26.74
5000VP5"PSA5-Hole Vacuum Petal Pad$24.54
60006"PSA$22.32
6000K6"Velcro$24.54
6000KV6"Velcro6-Hole Vacuum, Ring & Groove$26.74
6000VR6"PSA6-Hole Vacuum, Ring & Groove$24.54

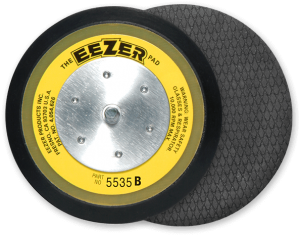

Industrial Duty Backup Pads 1/4 - 20 Thread

Mid-range Industrial applications. Tapered edge with epoxy-glass backing. Fine to medium grit abrasive 120+, 10,000 RPM.
Part #Size (dia.)TypeDescriptionMSRP
5535B5"PSA$20.66
6636B6"PSA$20.12

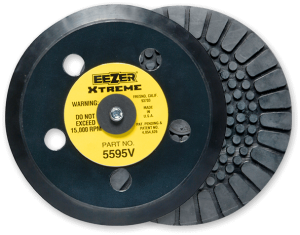

Xtreme Duty Backup Pads 5/16 24 Thread - Cool Running, Petal Pad Design

Xtreme Pads are tough! Unaffected by sanding heat. Flexible or firm edge. Cool running petal pad design􀀚 All abrasives including X-weight, 15,000 RPM.
Part #Size (dia.)TypeDescriptionMSRP
3010K3"VelcroNEW! Superflex Xtreme Pad 1/4 x 20 Male Thread$18.50
3010KS3"VelcroNEW! Superflex Xtreme Pad (soft) 1/4 x 20 Male Thread$18.50
3015K3"VelcroNEW! Superflex Xtreme Pad 5/16 x 24 Male Thread$18.50
3015KS3"VelcroNEW! Superflex Xtreme Pad (soft) 5/16 x 24 Male Thread$18.50
55955"PSAFirm Edge Pad$23.42
5595S5"PSASoft Edge Pad$23.42
5595V5"PSAFirm Edge Pad, 5-Hole Vacuum$24.54
5595VS5"PSASoft Edge Pad, 5-Hole Vacuum$24.54
5595K5"VelcroFirm Edge Pad$25.63
5595KS5"VelcroSoft Edge Pad$25.63
5595KV5"VelcroFirm Edge Pad, 5-Hole Vacuum$26.74
5595KVS5"VelcroSoft Edge Pad, 5-Hole Vacuum$26.74

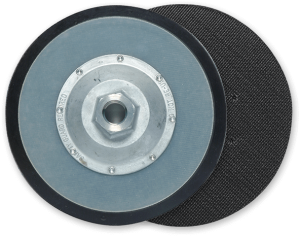

Pads With 5/8 X 11 Female Hubs

Use with angle head sanders and polishers. Medium to coarse abrasives, 6000 RPM.
Part #Size (dia.)TypeDescriptionMSRP
5000H5"PSA5/8" x 11" Threaded Hub Attached$23.69
5000HK5"Velcro5/8" x 11" Threaded Hub Attached$26.74
6000H6"PSA5/8" x 11" Threaded Hub Attached$23.69
6000HK6"Velcro5/8" x 11" Threaded Hub Attached$26.74
7000H7"PSA5/8" x 11" Threaded Hub Attached$26.74
7000HK7"Velcro5/8" x 11" Threaded Hub Attached$30.05
88388"PSA5/8" x 11" Threaded Hub Attached$26.63
8838K8"Velcro5/8" x 11" Threaded Hub Attached$34.48

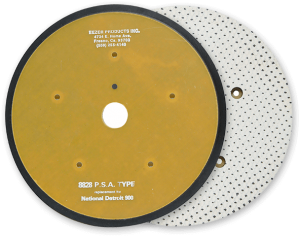

8" Orbital Pads, 5 & 6 Hole Mount

Tapered edge with epoxy-glass backing.
Part #Size (dia.)TypeDescriptionMSRP
88288"PSA5-Hole Mount$23.69
8828P8"PSA5-Hole Mount, Petal Pad$23.69
8828K8"Velcro5-Hole Mount$31.17
8828VP8"PSA5-Hole Mount, Petal Pad Vacuum$37.79
8828PVK8"Velcro5-Hole Mount, Petal Pad Vacuum$43.30
88888"Glue6-Hole Mount, Fully Molded. Tapered Edge$22.88
88988"PSA6-Hole Mount$22.88
8898K8"Velcro6-Hole Mount$31.17
8898VP8"PSA6-Hole Mount, Petal Pad Vacuum$37.79
8898PVK8"Velcro6-Hole Mount, Petal Pad Vacuum$37.79

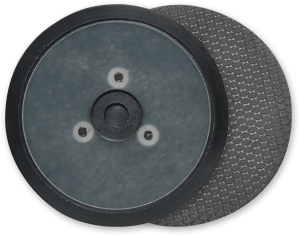

Pads For Electric Palm Sanders

Industrial duty high performance replacement. 3-hole universal mount. Fits Porter Cable®, Makita®, Bosh®, DeWalt®.
Part #Size (dia.)TypeDescriptionMSRP
55915"PSA$17.61
55925"PSA5-Hole Vacuum$18.74
55945"PSA8-Hole Vacuum$18.74
55975"Velcro$19.29
55985"Velcro5-Hole Vacuum$20.39
55995"Velcro8-Hole Vacuum$20.39

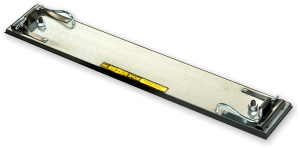

Straightline Sanding Shoes

Fits all inline sanders except Hutchins®.
Part #SizeTypeDescriptionMSRP
15002 3/4 x 16 1/2PSAOne Clip$24.26
1500P2 3/4 x 16 1/2PSAOne Clip, Post Pad$24.26
16002 3/4 x 17PSAPSA & Clip-on$24.26
1600P2 3/4 x 17PSAPSA & Clip-on, Post Pad$24.82
1600K2 3/4 x 16 1/2Velcro$31.45
1600V2 3/4 x 16 1/4PSAVacuum, Eezer 2050 Replacement$38.09
1600VK2 3/4 x 16 1/4VelcroVacuum, Eezer 2050 Replacement$45.81
1611V2 3/4 x 11PSAViking Replacement$23.69

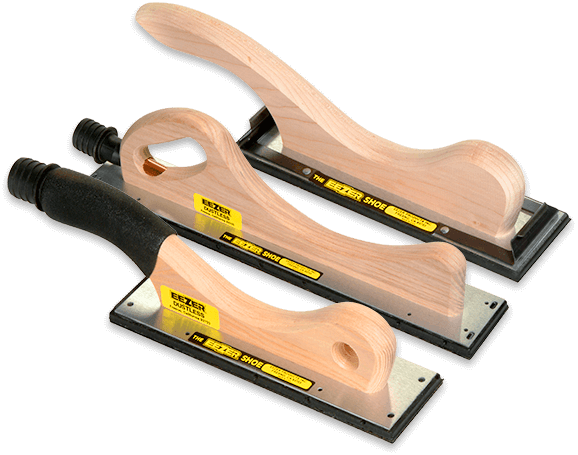

Handsanders With Hardwood Handles

Pad surface works with both clip-on and PSA abrasives.
Part #SizeTypeDescriptionMSRP
14002 3/4 x 17 OR
2 3/4 x 16 1/4
Clip-on
OR PSA
Base Length: 15 3/4$28.18
1400F2 3/4 x 17 OR
2 3/4 x 16 1/4
Clip-on
OR PSA
Base Length: 15 3/4, Lacquered Handle$29.24
1400P2 3/4 x 17 OR
2 3/4 x 16 1/4
Clip-on
OR PSA
Base Length: 15 3/4, Post Surface$29.24
1400K2 3/4 x 16 1/2VelcroBase Length: 15 3/4$33.65
14112 3/4 x 11 OR
2 3/4 x 9 3/4
Clip-on
OR PSA
Base Length: 9 1/2$24.82
14082 3/4 x 8 OR
2 3/4 x 7 1/4
Clip-on
OR PSA
Base Length: 6 3/4$20.39
1411K2 3/4 x 6 3/4VelcroBase Length: 9 1/2$30.13
1408K2 3/4 x 8VelcroBase Length: 6 3/4$25.70

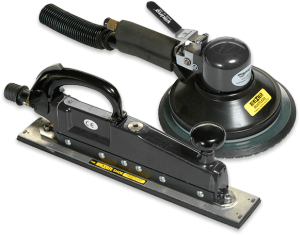

Dustless Sanding Accessories

Part #DescriptionMSRP
2060-31 1/8" to 1 1/4" Vacuum Hose Adapter, Aluminum Coupling$8.23
2060-41 1/8" Flex Hose, Per Foot$3.88
10133/4" x 8' Ultralight Handsander Hose$51.88

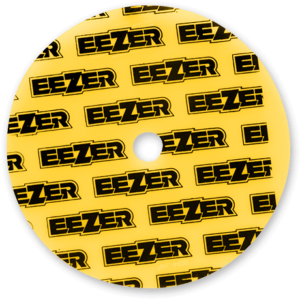

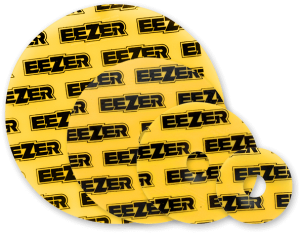

Epoxy Fiberglass Backing Plates - Standard Duty

Formed 2 degrees, 718" center hole. Industry's safest backing plates for grinding.
Part #Size (dia.)TypeDescriptionMSRP
44033".040"Formed 2 Degrees, 7/8" Center Hole$4.69
44044 1/2".040"Formed 2 Degrees, 7/8" Center Hole$5.30
44055".040"Formed 2 Degrees, 7/8" Center Hole$6.63
44066".040"Formed 2 Degrees, 7/8" Center Hole$7.43
44077".040"Formed 2 Degrees, 7/8" Center Hole$9.23
44099".040"Formed 2 Degrees, 7/8" Center Hole$11.57

Warning! Use only as stacked sets, at least two sizes, one behind the other, or “leaf spring effect”. Failure to do so will limit the life of the plates and void the warranty. Never use a single backing plate alone. Never use a backing plate without first inspecting it for signs of irregularities such as fracture, excessive wear, nicks, or cuts at the edge or center hole. Do not exceed maximum of 6,000 RPM. Always wear safety glasses, face shield, and heavy gloves when grinding.

Epoxy Fiberglass Backing Plates - Heavy Duty

Part #Size (dia.)TypeDescriptionMSRP
46055".062"Formed 2 Degrees, 7/8" Center Hole$7.09
46077".062"Formed 2 Degrees, 7/8" Center Hole$9.40
46099".062"Formed 2 Degrees, 7/8" Center Hole$12.09

Backing Plate Sets

Part #TypeDescriptionMSRP
4300.040"4403, 4404 & 4405, On Skin-Packed Display Card$16.47

Available Surfaces, Options & Part Numbers

We manufacture a variety of backup pads for many industries. Below is an example of the surfaces & attachment methods of our back up pads.

Part number letters shown. Please refer to the pricing page for specific availability.

Standard / PSA Adhesive

Stick It Sandpaper standard - Available in either white (no letter) or black (B)

(EG: 5595 / 5535B)

Petal Surface

Designed to maximize sandpaper life - Denoted with a (P)

(EG: 5535P)

Velcro Surface

Hook and Loop denoted with a (K)

(EG: 5535K)

Vacuum Holes

Denoted with a (V)

(EG: 5535V)

Threaded Female Hub

Denoted with a (H)

(EG: 5000H)

Soft

Denoted with a (S)

(EG: 5595S)

Download or view our full catalog & price list
